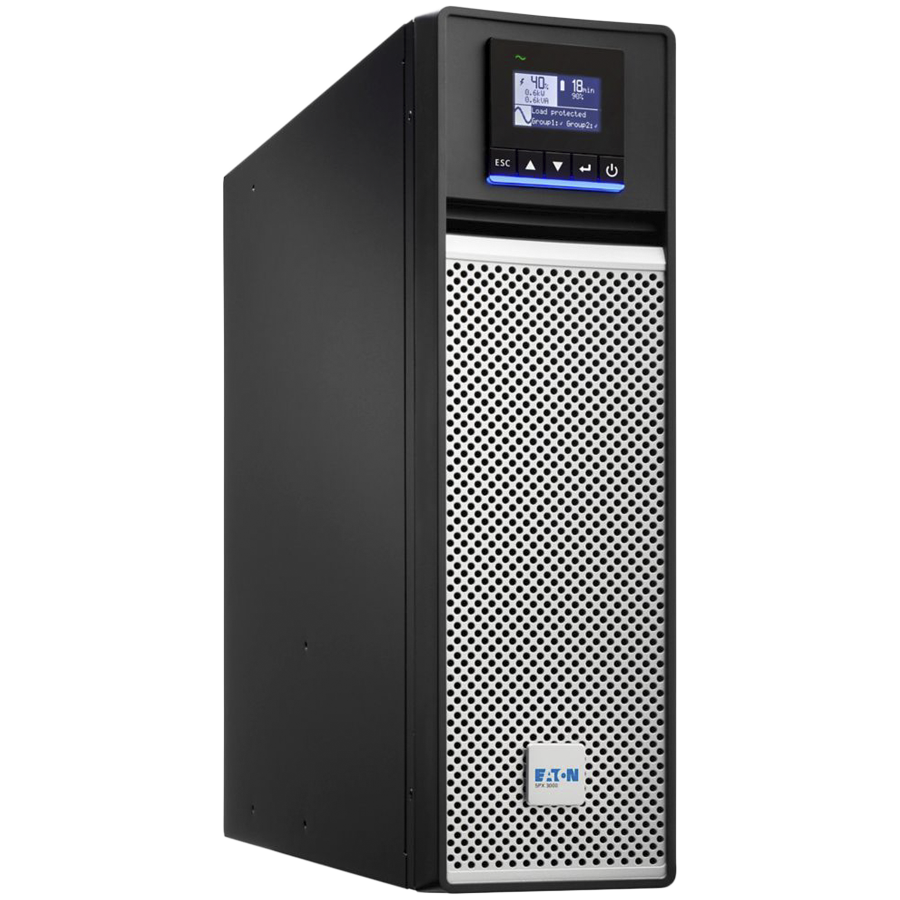

Eaton UPS 5PX Gen2 3000VA/3000W; 3U; Rack/Tower; Line Interactive; Input C20; Output C13x 8, 1x C19; LCD display; USB port; Serial port (RS232); Dry contacts (3 outputs, 1 input, optocoupler, DB9); Network card slot; Rack-mounting kit; 3Yr on electronics, 2yrs on battery

Opis

UPS Technology: Line Interactive
Output Power Capacity: 3000 VA
Maximum Electrical Power Rating: 3000 W
Nominal Output Voltage: 230 V
Certifications: CE cTUVus EAC Cm UKCA Ukr KCC ENERGY STAR
Voltage Phase: Single
Status Notification Method: LCD
Circuit Protection: Automatic Circuit Breaker
Surge Suppression: Yes
Output Waveform: Sinewave
Maximum Output Voltage: 230 V
Maximum Output Frequency: 60 Hz
Minimum Output Frequency: 50 Hz
Output Power Connectors Quantity: 10
IEC-320 C13: 8
IEC-320 C19: 2
Maximum Input Voltage: 294 V
Minimum Input Voltage: 160 V
Maximum Input Frequency: 70 Hz
Minimum Input Frequency: 47 Hz
Input Power Connectors Quantity: 1
Input Power Connectors Type: IEC-320 C20
Battery Location: internal
Battery Installed Quantity: 6
Expansion Slot Quantity: 1
Management Port Connector Type: RS-232 9-pin D-Sub
USB 4-pin
Maximum Operating Ambient Temperature: 40 °C
Maximum Operating Humidity: 90 %
Minimum Operating Ambient Temperature: 0 °C
Minimum Operating Humidity: 0 %
Max. Altitude Operating: 3000 m
External Color: Black/Silver
Mounting Capability: Rackmount
Standard Rack Height: 3 U
Included Accessories: Cable Clips
Quick Start Guide
Mount kit
Cable Included: Power Cable
Serial Cable
USB Cable
Depth (mm): 483 mm
Height (mm): 129 mm
Width (mm): 438 mm
Nominal Weight: 31.1 kg
Warranty Products Returnable: Yes
Warranty Term (month): 36 month(s)
Warranty validation Criteria: Serial Number
Pack Weight Brutto (kg): 33 kg
Pack Weight Netto (kg): 31 kg
Pieces in pack: 1
Box Weight Brutto (kg): 33 kg
Retail Packaging Net Weight Carton: 1 kg
Retail Packaging Net Weight Plastic: 1 kg
Packs in Box: 1
Package Type: Box
