Opis

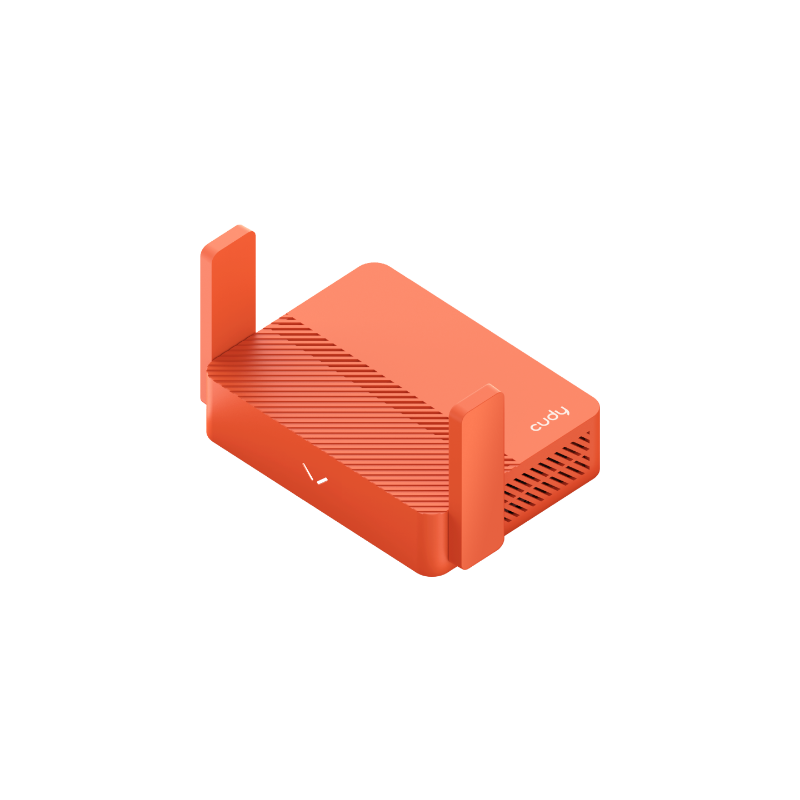

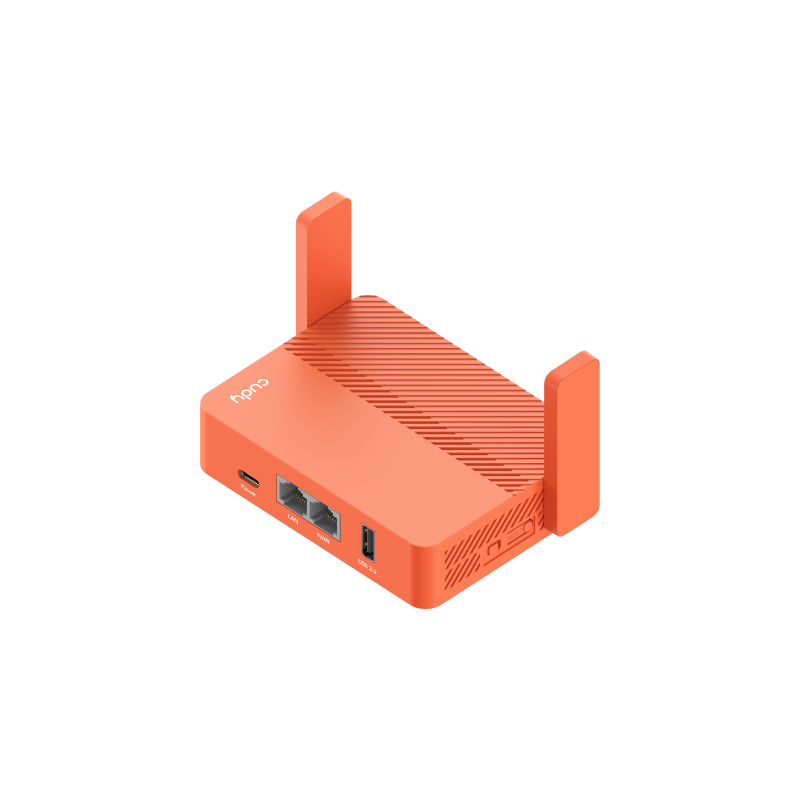

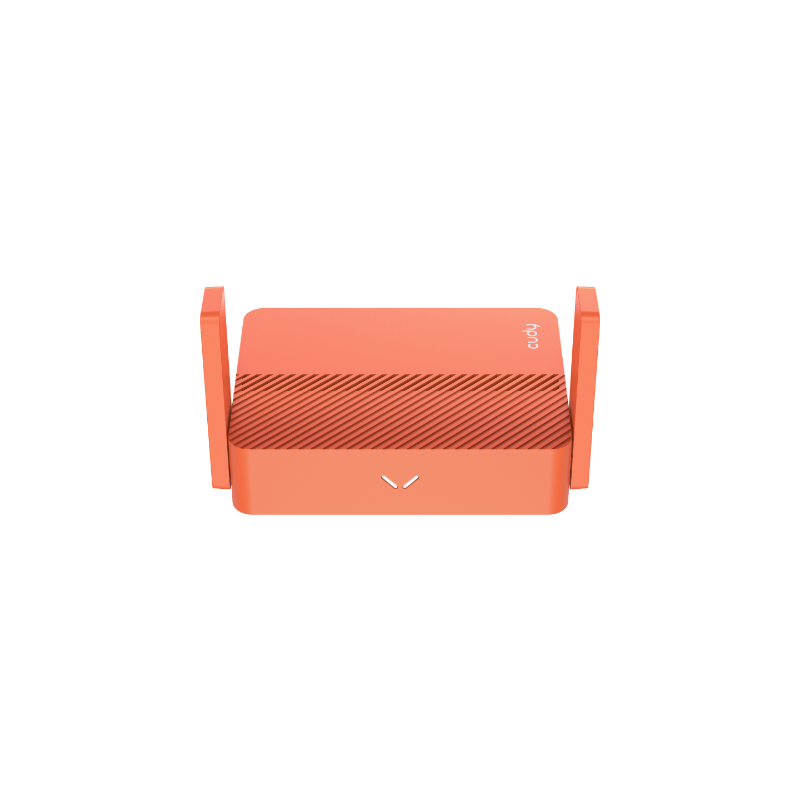

Mini WiFi usmjerivač napajan putem USB-C priključka, idealan za kriptiranje veze prema uredu, dijeljenje plaćenog WiFi-ja i postavljanje poslužitelja za datoteke.
Hardverske specifikacije
- Procesor: 580 MHz jednojezgreni, MIPS24KEC
- Memorija / Pohrana: Flash/ROM: 16 MB (128 Mbit) NOR; DDR/RAM: 128 MB (1 Gbit) DDR3
- Bežična mreža: 5 GHz: 867 Mbps; 2.4 GHz: 300 Mbps; 5 GHz: 2T2R (2×2 MIMO); 2.4 GHz: 2T2R (2×2 MIMO)
- Wi-Fi antene: 2 fiksne
- Beamforming: Da
- Domet: Maks. 150 m (u otvorenom prostoru)
- Performanse kroz zidove: 2 drvena zida < 10 cm; 1 betonski zid < 20 cm
- Sučelja: 2× 10/100 Mbps RJ45 (1× WAN, 1× LAN); 1× USB-A 2.0
- LED indikatori: System
- Tipke: Reset; konfigurabilni DIP prekidač
- Napajanje: USB-C (DC / PD), ulaz 5V 2A
- Potrošnja energije: Maks. 8 W; mirovanje 3 W
- Radno okruženje: 0–40 ℃; skladištenje -40–70 ℃; vlažnost 10–90% bez kondenzacije
- Certifikati: FCC, CE
- Instalacija: Stolna
- Dimenzije: Uređaj: 118×80×27.5 mm
- Težina proizvoda: 101.8 g
- Sadržaj pakiranja: TR1200, USB kabel, Ethernet kabel, upute
- Pakiranje: Težina: 302.8 g; dimenzije: 176×140.5×56 mm; 40 kom/karton (60×30×37.5 cm, 13.1 kg bruto)
Softverske specifikacije
- Wi-Fi standardi: Wi-Fi 5
- Maksimalna modulacija Wi-Fi: 256-QAM
- Wi-Fi učinkovitost: MU-MIMO (dostupno na 5 GHz)
- Maksimalni kapacitet: 128 uređaja
- Preporučeni maksimalni broj klijenata: 40
- Maksimalna širina Wi-Fi kanala: 80 MHz
- Wi-Fi sigurnost: WPA/WPA2/WPA3
- Gostujuća mreža: 2.4 GHz, 5 GHz
- WPS: Da
- Radni načini: Wi-Fi Router, Access Point, Range Extender, WISP
- Mesh: Cudy Mesh
- Mesh backhaul: Wireless i Wired, Multi-Band
- WAN mode: DHCP, Static IP, PPPOE, PPTP, L2TP
- QoS: Per-User Rate Limiting
- DHCP: Address Reservation, DHCP Client List, Server
- IP verzije: IPv4/IPv6
- IPv6 protokoli: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
- TTL prilagodba: Extend, Spoof, Custom
- IGMP: IGMP Proxy, IGMP Snooping
- Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall: SPI Firewall, DoS Protection, Block PING
- Application Layer Gateway: IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
- VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN performanse: WireGuard Client (UL/DL): 49 / 43 Mbps; WireGuard Server (UL/DL): 43.6 / 48 Mbps
- DNS opcije: DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS
- DNS over TLS provajderi: Cloudflare, Google, Quad9, Custom
- USB funkcije: Samba Server
- Wake on LAN: Da
- Online detekcija: Da
- Roditeljska kontrola: Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter
- Upravljanje uređajima: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding, Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
- Content Management: Domain Filter, IP Filter
- LED kontrola: Da
- Metode lokalne kontrole: Config Web Page, App Control
- Metode daljinske kontrole: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
- Nadogradnja firmware-a: Local Update, App (Over the Air), Online Update
- Pouzdanost: Timed Reboot, Backup i Restore
- Alati za dijagnostiku: Diagnosis, Ping, Traceroute, NSLookup, System Log
- Dashboard: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
- Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
