Opis

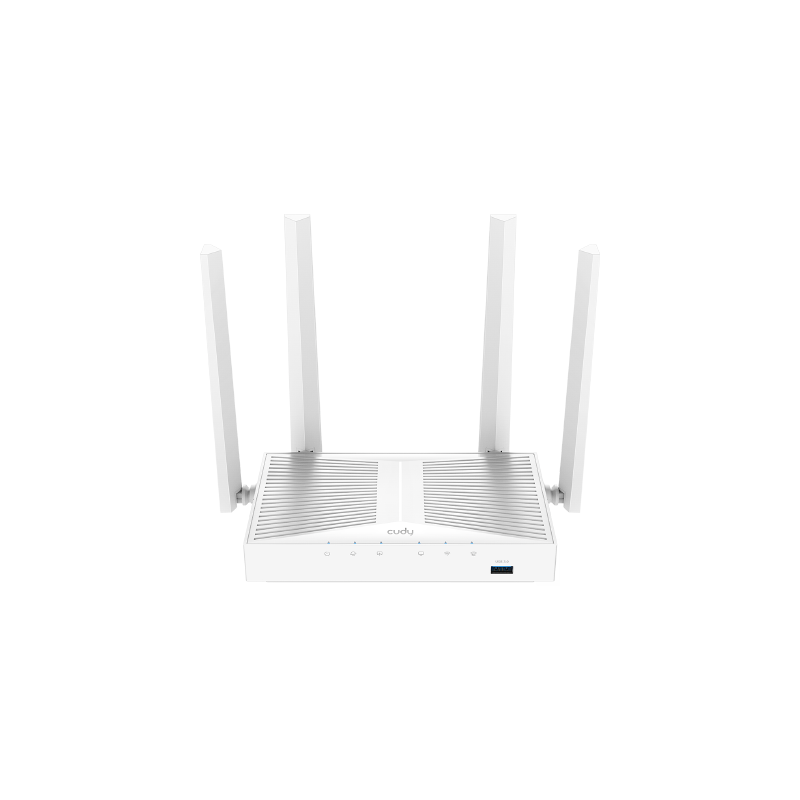

Dvopojasni AC1200 WiFi usmjerivač s USB priključkom, idealan za SMB poslužitelje, streaming 4K sadržaja i korištenje interneta do 1000 Mbps.
Hardverske specifikacije
- Procesor: 880 MHz dvojezgreni, MIPS1004Kc
- Memorija / Pohrana: Flash/ROM: 16 MB (128 Mbit) NOR; DDR/RAM: 128 MB (1 Gbit) DDR3
- Bežična mreža: 5 GHz: 867 Mbps; 2.4 GHz: 300 Mbps; 5 GHz: 2T2R (2×2 MIMO); 2.4 GHz: 2T2R (2×2 MIMO)
- Wi-Fi antene: 4 fiksne
- Pojačala (FEM / PA/LNA): 5 GHz: 2 interna; 2.4 GHz: 2 interna
- Beamforming: Da
- Domet: Maks. 170 m (testirano u otvorenom prostoru)
- Performanse kroz zidove: 2 drvena zida < 10 cm; 1 betonski zid < 20 cm

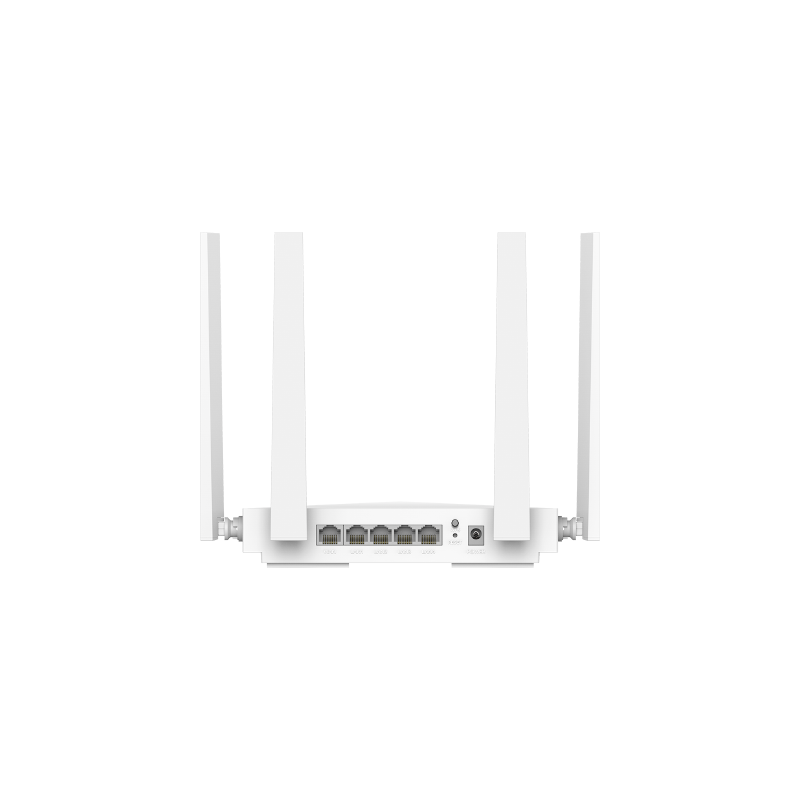

- Sučelja: 5× Gigabit RJ45 portova (1× WAN, ostalo LAN); 1× USB-A 3.0
- LED indikatori: Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
- Tipke: WPS, Reset
- Napajanje: DC 12V 1.5A (Adapter ulaz: 100–240V AC; izlaz: 12V 1.5A DC)
- Radno okruženje: 0–40 ℃; skladištenje -40–70 ℃; vlažnost 10–90% bez kondenzacije
- Certifikati: FCC, CE
- Instalacija: Stolna ili zidna montaža
- Dimenzije: Uređaj: 183.3×109×38 mm; antene: 175 mm
- Težina proizvoda: 284 g
- Sadržaj pakiranja: WR1300S uređaj, adapter, Ethernet kabel, upute
- Pakiranje: Težina: 729.4 g; dimenzije: 330×256×60 mm; 10 kom/karton (52.8×31.7×34.7 cm, 8 kg bruto)
Softverske specifikacije
- Wi-Fi standardi: Wi-Fi 5
- Maksimalna modulacija Wi-Fi: 256-QAM
- Wi-Fi učinkovitost: MU-MIMO (dostupno na 5 GHz)
- Maksimalni kapacitet: 128 uređaja
- Preporučeni maksimalni broj klijenata: 50
- Maksimalna širina Wi-Fi kanala: 80 MHz
- Wi-Fi sigurnost: WPA/WPA2/WPA3
- Gostujuća mreža: 2.4 GHz, 5 GHz
- WPS: Da
- Radni načini: Wi-Fi Router, Access Point, Range Extender, WISP, Client
- Mesh: Cudy Mesh, Wireless Backhaul, Wired Backhaul, Multi-Band Backhaul True
- WAN mode: DHCP, Static IP, PPPOE, PPTP, L2TP
- QoS: Per-User Rate Limiting
- DHCP: Address Reservation, DHCP Client List, Server
- IP verzije: IPv4/IPv6
- IPv6 protokoli: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
- IPTV/VLAN: Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN
- TTL prilagodba: Extend, Spoof, Custom
- IGMP: IGMP Proxy, IGMP Snooping
- Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall: SPI Firewall, DoS Protection, Block PING
- Application Layer Gateway: IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough
- VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN performanse: OpenVPN Client (UL/DL): 22 / 24.7 Mbps, OpenVPN Server (UL/DL): 22 / 20.9 Mbps, WireGuard Client (UL/DL): 142 / 233.9 Mbps, WireGuard Server (UL/DL): 213 / 152 Mbps
- DNS opcije: DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS, DNS over TLS Providers: Cloudflare, Google, Quad9, Custom
- USB funkcije: Samba Server
- Wake on LAN: Da
- Online detekcija: Da
- Maksimalan broj istovremenih VPN tunela: IPSec: 20, PPTP/L2TP: 16, OpenVPN: 16
- Roditeljska kontrola: Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter
- Upravljanje uređajima: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding, Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
- Content Management: Domain Filter, IP Filter
- Metode lokalne kontrole: Config Web Page, App Control
- Metode daljinske kontrole: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
- Nadogradnja firmware-a: Local Update, App (Over the Air), Online Update
- Pouzdanost: Timed Reboot, Backup i Restore
- Alati za dijagnostiku: Diagnosis, Ping, Traceroute, NSLookup, System Log
- Dashboard: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
- Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
