Opis

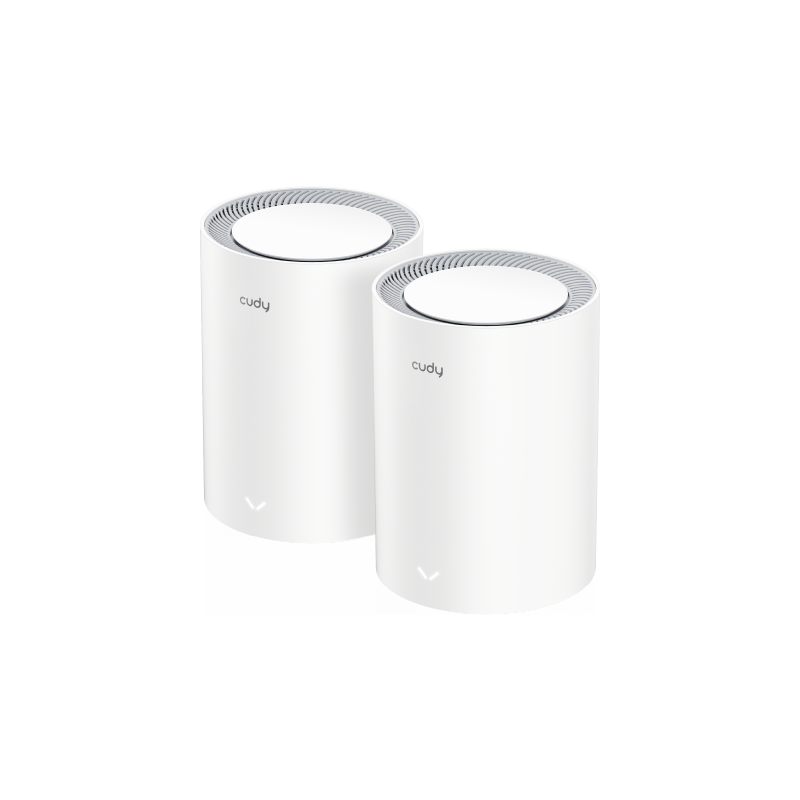

Dual-band WiFi 7 router s ukupnom brzinom od 3,6 Gbps i tri Gigabit porta, namijenjen za velike kuće s Gigabit Internet pristupom.
Hardverske specifikacije
- CPU: 2.0 GHz Quad-Core, ARM Cortex-A7
- Flash/ROM: 128 MB (1 Gbit) NAND
- DDR/RAM: 512 MB (4 Gbit) DDR3L
- 5 GHz Wi-Fi brzina: 2882 Mbps
- 2.4 GHz Wi-Fi brzina: 688 Mbps
- 5 GHz Wi-Fi streamovi: 2T2R (2×2 MIMO)
- 2.4 GHz Wi-Fi streamovi: 2T2R (2×2 MIMO)
- Wi-Fi antene: 4× Internal
- FEM / PA/LNA: 5 GHz: 2× External; 2.4 GHz: 2× Internal
- Beamforming: Da
- Maksimalni domet: 220 m (722 ft), testirano u open-space okruženju; stvarni domet ovisi o rasporedu i materijalima zidova
- Performanse kroz zidove: 2 drvena zida < 10 cm, 1 betonski zid < 20 cm ili 2 betonska zida < 10 cm
- Referentna pokrivenost unutrašnjosti: 2 Pack: 200 m², 3 Pack: 270 m², preporučeno postavljanje u centru svakog kata
- Gigabit RJ45 portovi: 3 (1× WAN, ostatak LAN)
- LED: System, Speed/Link/ACT indikatori Ethernet portova
- Fizički tasteri: WPS Button, Reset Button
- Napajanje: DC Jack, 12V⎓1A
- Adapter u paketu: Input: 100-240V~, 50/60Hz; Output: 12V⎓1A
- Maksimalna potrošnja energije: 9W
- Radna temperatura: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Temperatura skladištenja: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Vlažnost: Radna: 10% ~ 90% nekondenzirajući; Skladište: 5% ~ 95% nekondenzirajući
- Certifikati: FCC, CE
- Instalacija: Desktop
- Dimenzije proizvoda: Φ110×154.5 mm (Φ4.33×6.08 in)
- Težina proizvoda: 357.6 g (12.61 oz.)
- Sadržaj paketa: M3600, Power Adapter, Ethernet Cable, Installation Guide
- Težina paketa (Retail): 1-Pack: 731.3 g, 2-Pack: 1371.3 g, 3-Pack: 1847.5 g
- Dimenzije paketa: 1-Pack: 145×130×265 mm, 2-Pack: 330×130×265 mm, 3-Pack: 380×130×265 mm
- Jedinice po kartonu: 1-Pack: 16, 2-Pack: 8, 3-Pack: 4
- Dimenzije kartona: 1-Pack: 57×56×26 cm, 2-Pack: 55×54.5×35.3 cm, 3-Pack: 53.6×40×28.7 cm
- Bruto težina kartona: 1-Pack: 13.0 kg, 2-Pack: 12.3 kg, 3-Pack: 8.3 kg
- Netto težina kartona: 1-Pack: 11.7 kg, 2-Pack: 11.0 kg, 3-Pack: 7.4 kg
Softverske specifikacije
- Wi-Fi standardi: Wi-Fi 7
- Maksimalna modulacija Wi-Fi: 4K-QAM
- Wi-Fi učinkovitost: MLO, MRU, Puncturing, OFDMA, MU-MIMO, BSS Color
- Maksimalni kapacitet: 512 uređaja
- Preporučeni maksimalni broj klijenata: 200
- Maksimalna širina Wi-Fi kanala: 160 MHz
- Wi-Fi sigurnost: WPA/WPA2/WPA3
- Gostujuća mreža: 2.4 GHz, 5 GHz
- WPS: Da
- Radni načini: Wi-Fi Router, Access Point, Range Extender, WISP, Client
- Mesh: Cudy Mesh
- Mesh backhaul: Wireless i Wired, Multi-Band
- WAN mode: DHCP, Static IP, PPPOE, PPTP, L2TP
- QoS: Per-User Rate Limiting
- DHCP: Address Reservation, DHCP Client List, Server
- IP verzije: IPv4/IPv6
- IPv6 protokoli: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
- IPTV/VLAN: Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN
- TTL prilagodba: Extend, Spoof, Custom
- IGMP: IGMP Proxy, IGMP Snooping
- Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall: SPI Firewall, DoS Protection, Block PING
- Application Layer Gateway: IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough
- VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN performanse: OpenVPN Client (UL/DL): 66 / 66 Mbps; OpenVPN Server (UL/DL): 65 / 64 Mbps; WireGuard Client (UL/DL): 150 / 223 Mbps; WireGuard Server (UL/DL): 251 / 177 Mbps
- DNS opcije: DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS
- DNS over TLS provajderi: Cloudflare, Google, Quad9, Custom
- Wake on LAN: Da
- Online detekcija: Da
- Roditeljska kontrola: Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter
- Upravljanje uređajima: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding, Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
- Content Management: Domain Filter, IP Filter
- LED kontrola: Da
- Metode lokalne kontrole: Config Web Page, App Control
- Metode daljinske kontrole: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
- Nadogradnja firmware-a: Local Update, App (Over the Air), Online Update
- Pouzdanost: Timed Reboot, Backup i Restore
- Alati za dijagnostiku: Diagnosis, Ping, Traceroute, NSLookup, System Log
- Dashboard: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
- Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
