Opis

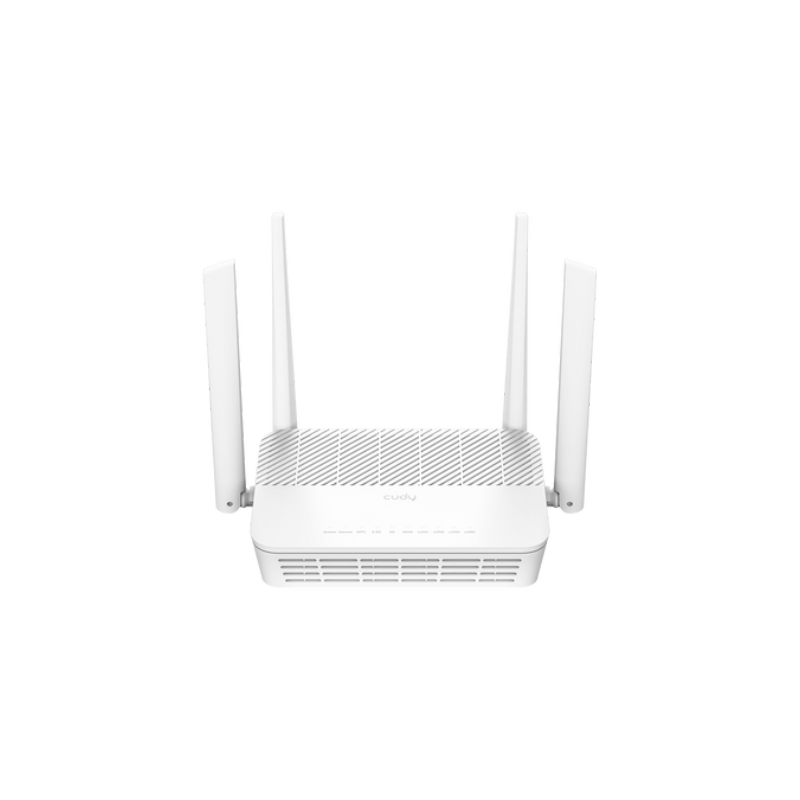

PoE napajani WiFi 6 usmjerivač s 2.5 Gbps internetskom povezivošću, idealan za povezivanje velikog broja uređaja i smanjenje latencije. Opremljen je USB priključkom za dijeljenje datoteka ili napajanje dodatnih uređaja.
Hardverske specifikacije
- Procesor: 1.3 GHz dvojezgreni, ARM Cortex-A53
- Memorija / Pohrana: Flash/ROM: 128 MB (1 Gbit) NAND; DDR/RAM: 512 MB (4 Gbit) DDR4
- Bežična mreža: 5 GHz: 2402 Mbps; 2.4 GHz: 574 Mbps; 5 GHz: 2T2R (2×2 MIMO) s dodatnim streamom; 2.4 GHz: 2T2R (2×2 MIMO)
- Wi-Fi antene: 4 fiksne
- Pojačala (FEM / PA/LNA): 5 GHz: 3 interna; 2.4 GHz: 2 interna
- Beamforming: Da
- Domet: Maks. 220 m (u otvorenom prostoru)
- Performanse kroz zidove: 2 drvena zida < 10 cm; 1 betonski zid < 20 cm ili 2 betonska < 10 cm

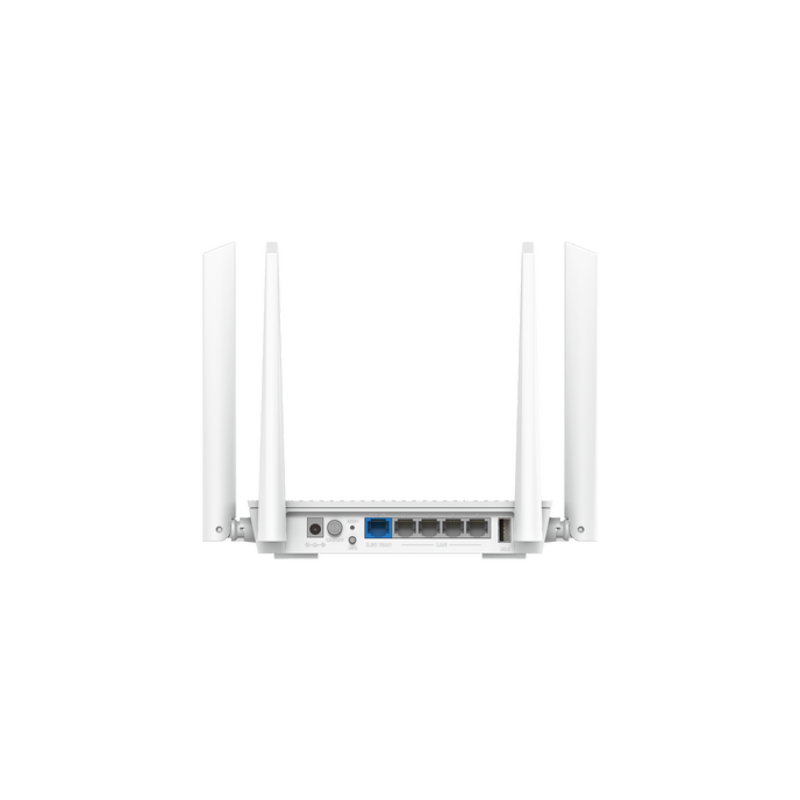

- Sučelja: 1× 2.5G RJ45 (WAN + PoE), 4× Gigabit RJ45 (LAN), 1× USB-A 2.0
- LED indikatori: System, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WAN, LAN, USB
- Tipke: Power On/Off, WPS, Reset
- Napajanje: DC 12V 1.5A ili 802.3at/af PoE (kroz WAN port)
- Potrošnja energije: Maks. 11.5 W; mirovanje 4.2 W
- Radno okruženje: 0–40 ℃; skladištenje -40–70 ℃; vlažnost 10–90% bez kondenzacije
- Certifikati: FCC, CE
- Instalacija: Stolna ili zidna montaža
- Dimenzije: Uređaj: 173×123.8×33 mm
- Težina proizvoda: 360.6 g
- Sadržaj pakiranja: WR3000P, adapter, Ethernet kabel, upute
- Pakiranje: Težina: 748.6 g; dimenzije: 304×268×54 mm; 20 kom/karton (55.6×55.5×32.5 cm, 17 kg bruto)
Softverske specifikacije
- Wi-Fi standardi: Wi-Fi 6
- Maksimalna modulacija Wi-Fi: 1024-QAM
- Wi-Fi učinkovitost: OFDMA, MU-MIMO, BSS Color
- Maksimalni kapacitet: 512 uređaja
- Preporučeni maksimalni broj klijenata: 200
- Maksimalna širina Wi-Fi kanala: 160 MHz
- Wi-Fi sigurnost: WPA/WPA2/WPA3
- Gostujuća mreža: 2.4 GHz, 5 GHz
- WPS: Da
- Radni načini: Wi-Fi Router, Access Point, Range Extender, WISP, Client
- Mesh: Cudy Mesh, Wireless Backhaul, Wired Backhaul, Multi-Band Backhaul
- WAN mode: DHCP, Static IP, PPPOE, PPTP, L2TP
- QoS: Per-User Rate Limiting
- DHCP: Address Reservation, DHCP Client List, Server
- IP verzije: IPv4/IPv6
- IPv6 protokoli: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
- IPTV/VLAN: Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN
- TTL prilagodba: Extend, Spoof, Custom
- IGMP: IGMP Proxy, IGMP Snooping
- Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall: SPI Firewall, DoS Protection, Block PING
- Application Layer Gateway: IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
- VPN Server: WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier
- VPN Client: WireGuard, OpenVPN, IPsec, PPTP, L2TP, Zerotier
- VPN performanse: OpenVPN Client (UL/DL): 90/120 Mbps, OpenVPN Server (UL/DL): 180/160 Mbps, WireGuard Client (UL/DL): 224/230 Mbps, WireGuard Server (UL/DL): 360/314 Mbps
- DNS opcije: DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS, DNS over TLS Providers: Cloudflare, Google, Quad9, Custom
- Captive Portal: Da
- Wake on LAN: Da
- Online detekcija: Da
- Roditeljska kontrola: Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter
- Upravljanje uređajima: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding, Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
- Content Management: Domain Filter, IP Filter
- LED kontrola: Da
- Metode lokalne kontrole: Config Web Page, App Control
- Metode daljinske kontrole: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
- Nadogradnja firmware-a: Local Update, App (Over the Air), Online Update
- Pouzdanost: Timed Reboot, Backup i Restore
- Alati za dijagnostiku: Diagnosis, Ping, Traceroute, NSLookup, System Log
- Dashboard: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version
- Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed
